KFW3 -G03 - EVNCPC

Contract: 2107-KFW3.2–G03-48-CPC-TGE dated July 08, 2021.

Location of Supply and Installation: 110kV Dong Xuan Substation, 110kV Kon Tum 2 Substation, 110kV Cam Ranh Central Substation, 110kV Van Ninh 2 Substation, 110kV Tra Da Substation, 110kV Phu Hoa Substation.

Scope of Supply:

Supply of 110kV Primary Equipment: including (Circuit Breakers, Current Transformers (CTs), Voltage Transformers (VTs), Disconnecting Switches (Isolators), Earthing Switches (Grounding Switches), Surge Arresters, Aluminum Busbars, ACSR Conductors, Clamps, Support Structures, Accessories, etc.)

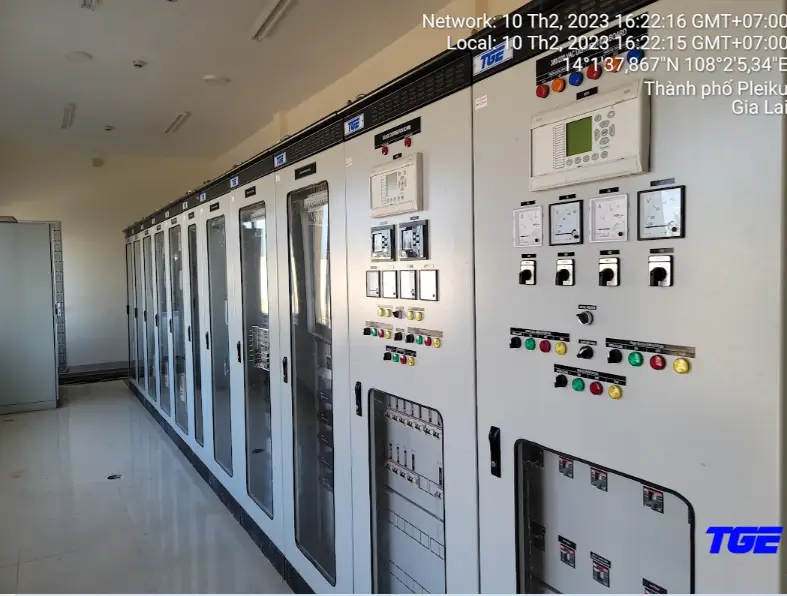

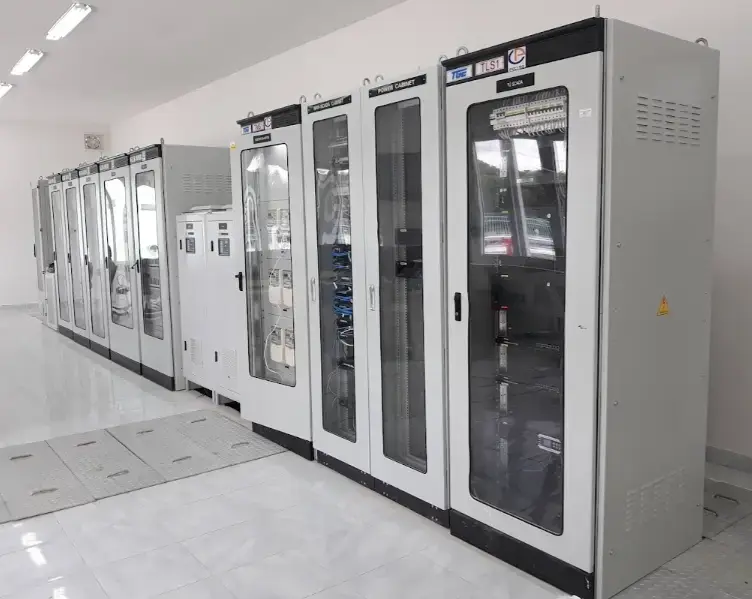

Supply of 110kV Control and Protection Panels: including (Line Panels, Transformer Control Panels, Outdoor Medium Voltage (MV) Interconnection Kiosk, Busbar Panels, Line Protection Panels, Communication Panels, DC Auxiliary Panels, AC Panels, Computer Panels, Supervisory Control (SC) Panels, Battery Charger Panels, 220VDC Battery System)

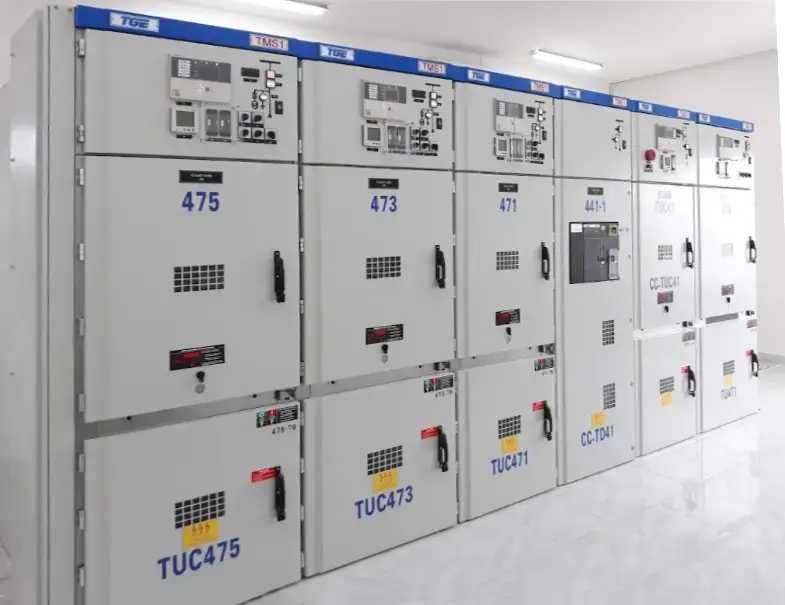

Supply of 24kV Compact Substation TMS1: (Incoming Line Cubicle, Voltage Transformer Cubicle, Sectionalizer Cubicle, Outgoing Feeder Cubicle)

Supply and Installation of Fire Alarm and Firefighting System, Intrusion Detection Camera System.
