TMS1

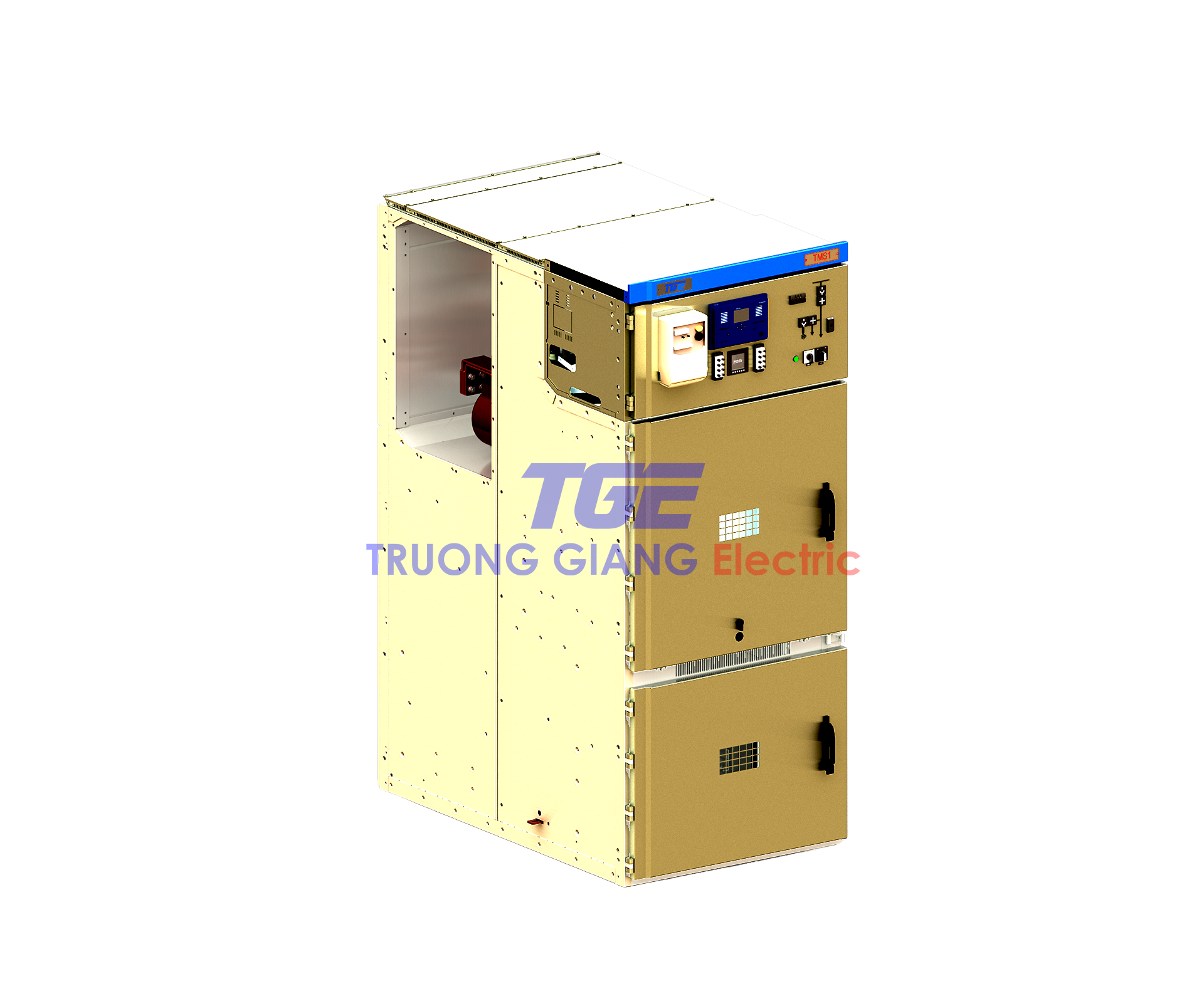

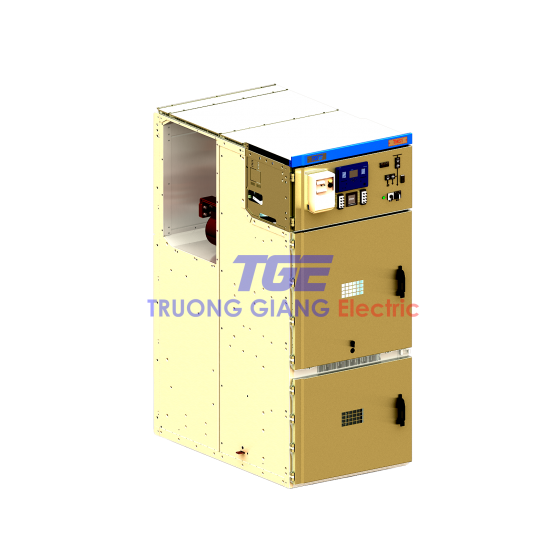

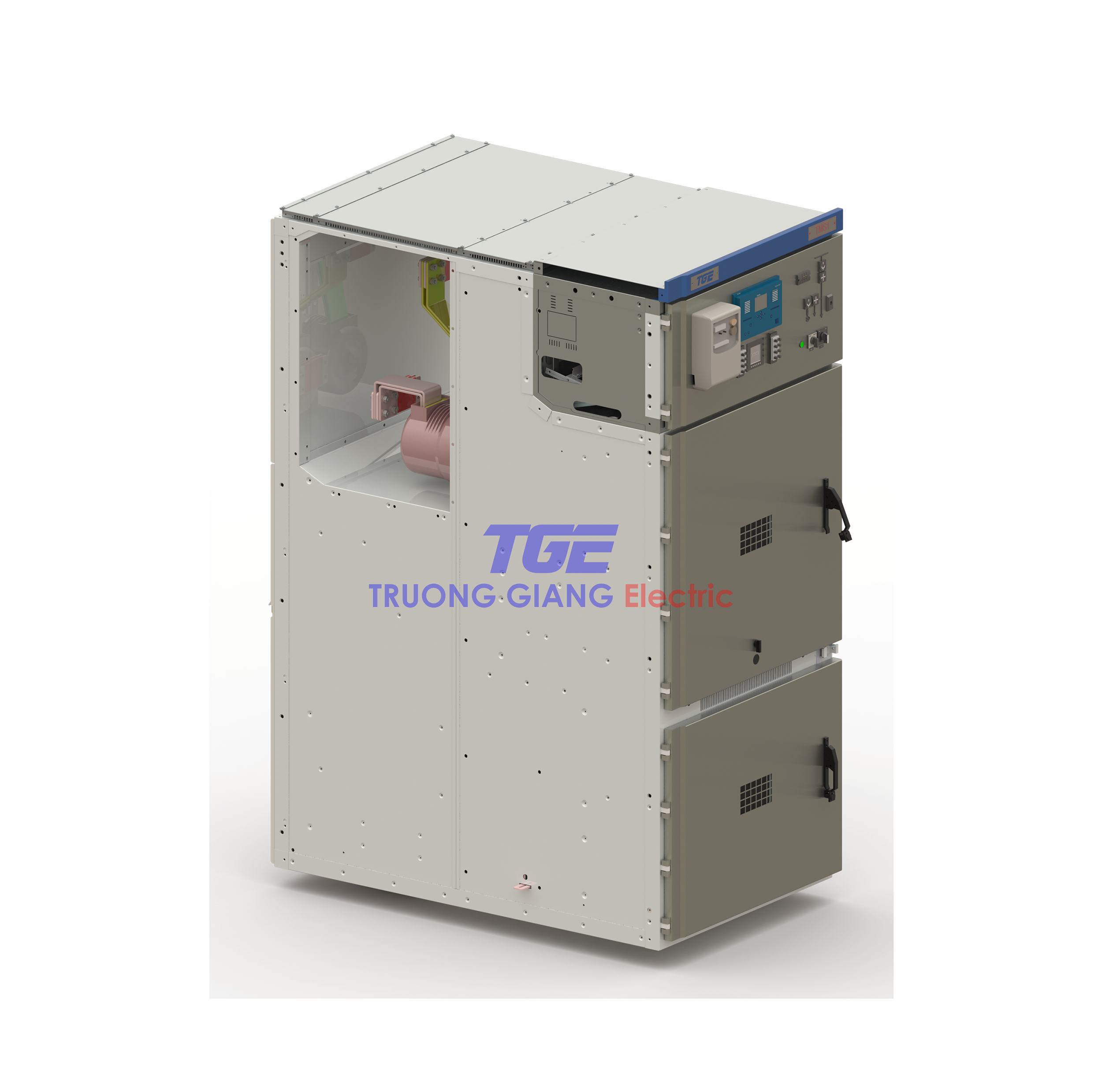

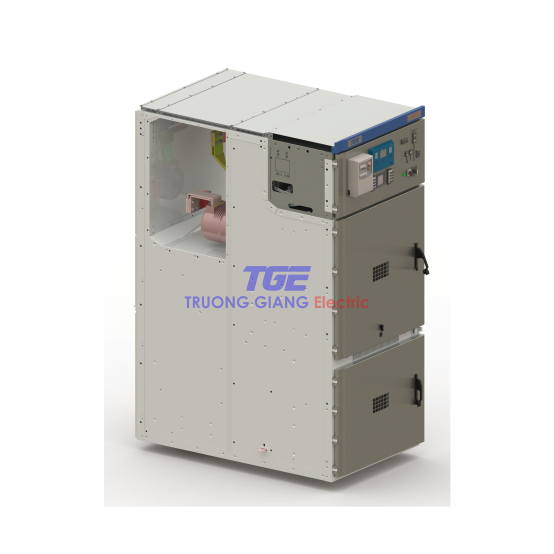

The TMS1 is a metal-clad, type-tested medium voltage switchgear designed with advanced technology, complies IEC 62271-200 standards and successfully tested by ASTA. It features a rated voltage of up to 40.5kV and a rated current of up to 2500A & equipped with Vacuum Circuit Breakers (VCB) from reputable manufacturers like TGE, Schneider Electric, and ABB,... The TMS1 offers a flexible and reliable solution for indoor applications in various sectors.
Ideal for utility power, industry, marine, mining, oil & gas, infrastructure, power plants, and substations, providing control and protection for transformers, capacitors, and motors.
Benefits:
- Safety: Ensures operator safety with features like internal arc classification AFLR, mechanical and electrical interlocks, and visible contacts.
- Flexibility: Allows direct connection to various other switchgear panels (ABB, Siemens, LS, etc.) without needing a linking panel.
- Reliability: Complies with IEC standards, fully type-tested, and requires limited maintenance due to vacuum interrupters.
- Efficiency: Compact design suitable for small installation spaces, reducing civil work costs.
- Ease of Use: Features a withdrawable version, easy busbar to cable connection solutions, and simple operation with local and remote options.
Features:
- Internal Arcing Classification AFLR (25kA/1s at 24kV).
- Pressure Relief system.
- Comprehensive mechanical and electrical interlocking system.
- Compartmentalized structure (busbar, circuit breaker, cables, low voltage).
- Intergrated with TV1 Vacuum Circuit Breaker (24kV, up to 31.5kA breaking capacity, up to 2500A rated current).
Technical Parameter:
- Rated Voltage: Up to 40.5 kV
- Rated Current (Main Busbar): Up to 3150 A
- Short-time Withstand Current: 31.5 kA / 3s
- Protection Degree: IP4X (external), IP2X (internal)
