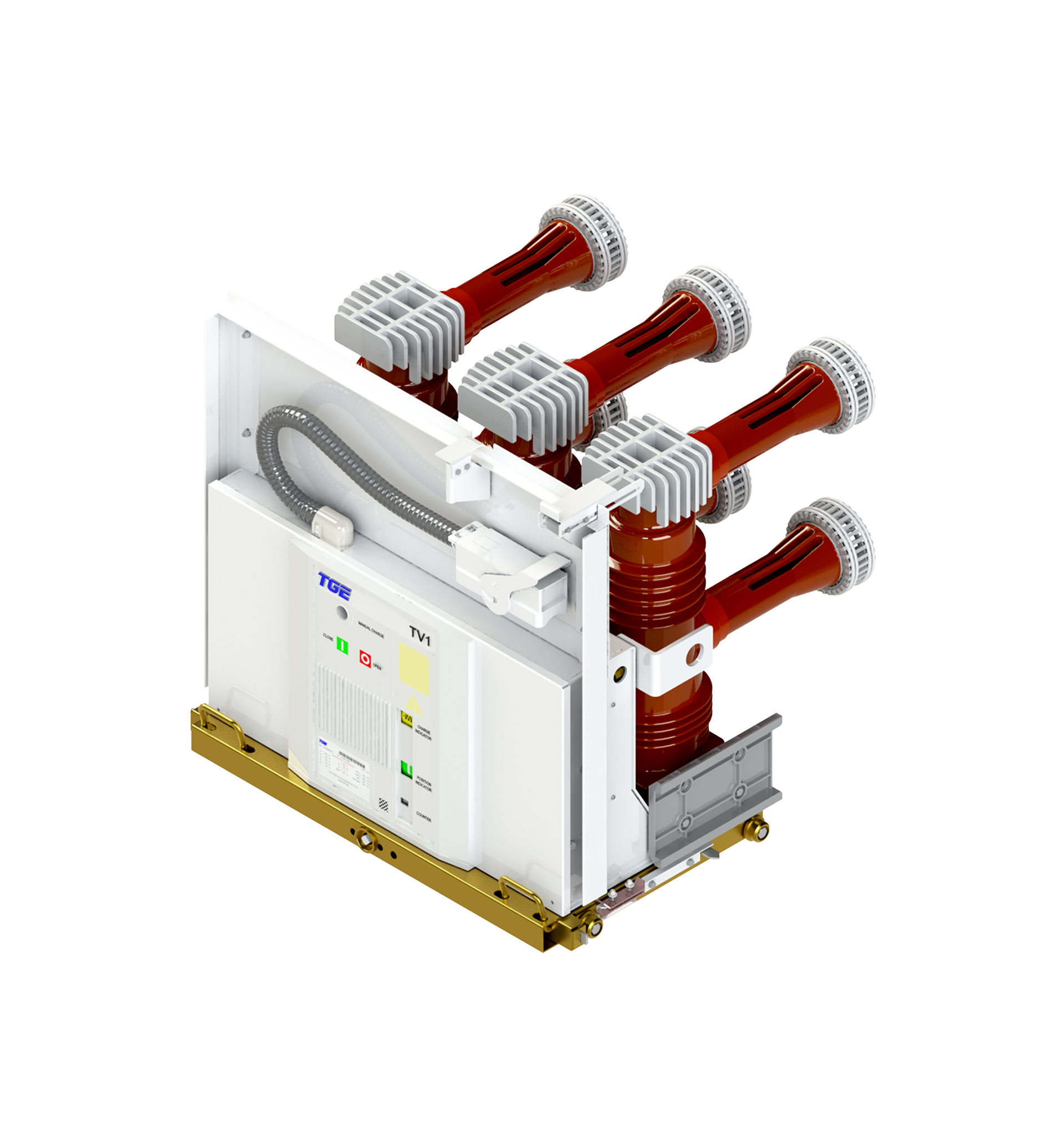

TV1 - Vacuum Circuit Breaker

The TGE TV1 is a highly reliable and efficient vacuum circuit breaker designed for medium voltage systems up to 40.5kV. Utilizing advanced vacuum interrupter technology within an embedded pole design, the TV1 ensures safe and dependable operation with minimal maintenance. Its modular construction and availability in both fixed and draw-out configurations provide flexibility for diverse application needs.

The TGE TV1 vacuum circuit breaker is ideal for a wide range of medium voltage applications, including:Power distribution networks, Power generation facilities, Industrial plants (e.g., mining, oil & gas), Commercial buildings, Infrastructure projects, Renewable energy installations (e.g., solar power)

Features:

Voltage rating up to 40.5kV
Embedded pole with vacuum interrupter
Modular design for easy maintenance
Available in fixed and draw-out frontal types
Rated current options from 630A up to 2500A (with options for 3150A and 4000A)
Short circuit breaking current options of 25/31.5/40/50 kA
High mechanical (M2 class) and electrical (E2 class) endurance
Comprehensive interlock system (optional) for enhanced safety
Complies with IEC 62271-100 standards

Benefits:

High Reliability: Proven vacuum interrupter technology for dependable performance.
Enhanced Safety: Advanced design and optional full interlocks to prevent human error.
Compact Design: Suitable for installations with limited space.
Easy Installation & Operation: Withdrawal version available for swift maintenance.
Minimal Maintenance: Vacuum interrupters embedded in epoxy resin require limited upkeep.
Long Service Life: High mechanical and electrical endurance.
Environmentally Friendly: Utilizes vacuum interruption technology.
